In the cervid industry, the very nature of these animals and their demeanor make Pneu-Dart products the perfect choice for medication and or sedation. In doing so, cervid livestock producers throughout the world have embraced the value of Pneu Dart remote delivery systems (RDS), one of which lowers risk of injury to the animal. As you peruse this website, you will discover a host of remote delivery device systems and accessories designed to aid in your cervid-related needs.
CUSTOMER VIDEOS OF PNEU-DART IN ACTION
Follow us on social media to see more!
All Pneu-Dart projectors have mechanically adjustable power controls that make for ideal delivery at close range or sizable distance, even from the bird’s eye view of a helicopter. This allows for quiet propulsion and less trauma to the animal when proper muzzle velocity is achieved.
Model 389
The Model 389 is the latest and most advanced cartridge-fired projector of the modern day era. Although unique, the Model 389 is a collaborative design based on its predecessor's best attributes. The Model 389 has proven to be the most versatile, accurate, and consistent cartridge-fired projector ever made. The hinged, breech loading barrel supports any size RDD Device and is equipped with our revolutionary Airflow Control Ports. Our ACP technology aligns with the exiting gas at the muzzle, thereby virtually eliminating “tail-kick” of the RDD Device. The five position power control has been moved closer to the user, ensuring silent, quick, and safe power adjustment for any shot distance.
Range - 0 to 70 yards with 1cc Type 'C' disposable RDD Devices
G2 X-Caliber
Pneu-Dart’s X-Caliber has become the best-selling, most accurate gas-based RDD projector ever built. The X-Caliber second generation supports a hammer-forged 39” 304 stainless steel barrel. Located directly behind the urethane coated forearm is our rotating power control engineered to vary the muzzle velocity without taking your eye off the target. Constructed of machined aluminum and coated with a handsome, elements-resistant, satin finish, the G2 X-Caliber is the best and most versatile of Pneu-Dart’s rifled bore projectors. This model also includes protective gauge housing and a spring-loaded rotating butt plate for quick loading.
Range - the greatest and the most accurate throughout the history of the company
X-2 Pistol
Pneu-Dart is pleased to announce the most innovative and practical gas-based RDD Device —the X-2. Constructed of durable 6061 machined aluminum and coated with a sharp, elements-resistant anodized finish, the X-2 is the finest and most versatile RDD Device ever built. The X-2’s sleek design possesses a variety of features, including a rotating rear barrel port engineered for quick and efficient RDD Device loading.
Range - the greatest and the most accurate in the history of the company

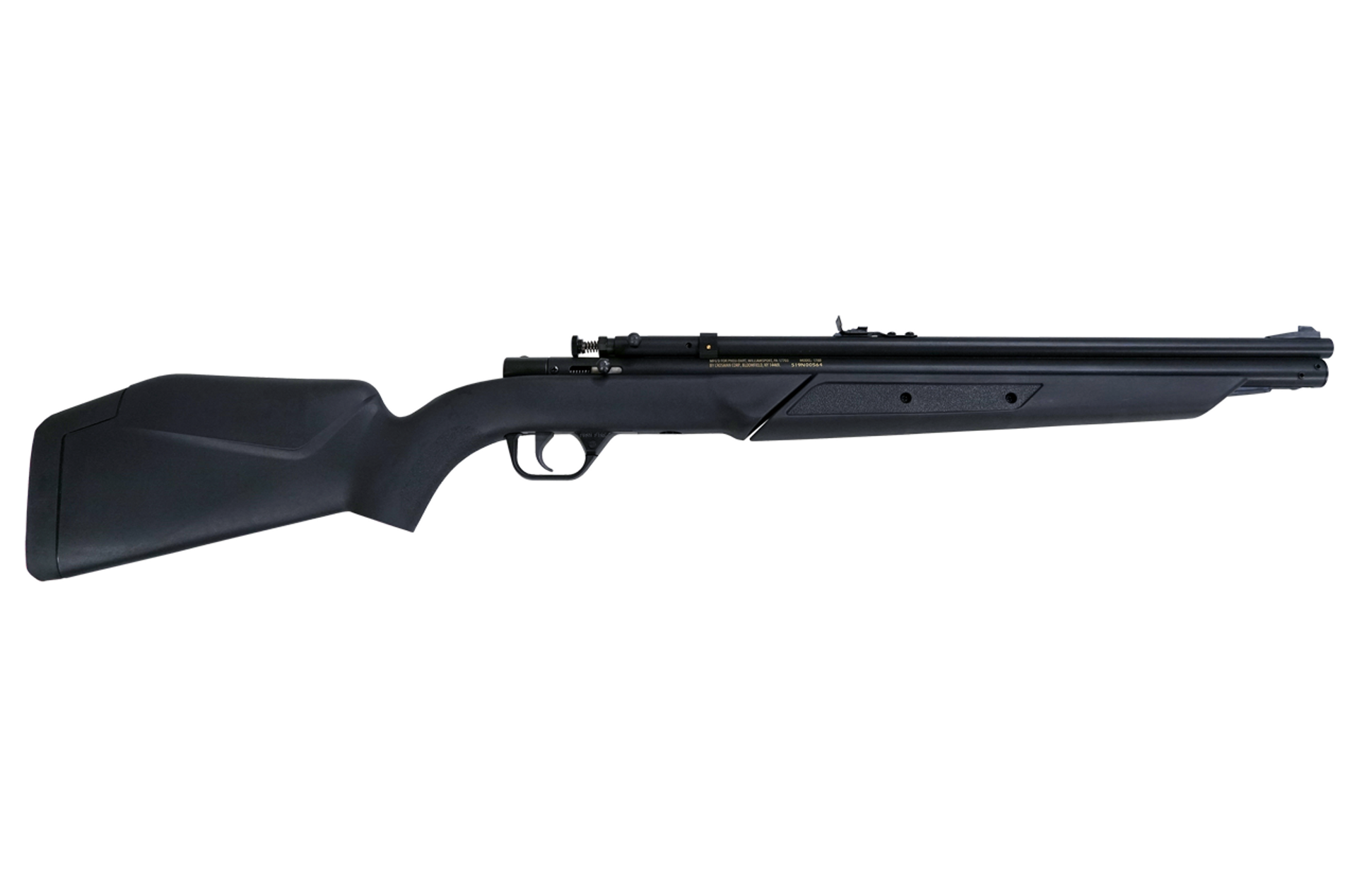

Model 178BS
The Model 178BS, Black Synthetic Stock breech loading projector, is an air driven projector designed for the person who has limited or occasional use for an immobilizing projector. Its design is simple yet effective.
Range - 2 feet to 40 yards with 1cc Type 'P' disposable RDD Devices controlled by number of strokes when pumping air into the projector and knurled power control knob on valve on bolt. Minimum - 1 pump; Maximum - 10 pumps.
Our disposable remote delivery devices (RDDs) come in a broad array of sizes, are easy to fill, and are color coded for speedy identification.
Each of our RDDs are custom built per order and specifically designed to meet the demands of the customer. We have a variety of options to choose from when ordering your RDDs which include: Gelatin Collars, Wire Barbs, Flight Stabilizers, Cannula (Needle) lengths, and RDD sizes. Please take a look at what option(s) are best for you and your delivery needs.
Click here to learn more about points to consider when selecting cannula length.
Type C RDDs
Pneu-Dart Type ‘C’ disposable RDDs support a 13mm tail diameter and are designed to provide precise medication delivery in a convenient, inexpensive projectile. Color coded in orange, Type ‘C’ RDDs are only used with our cartridge-fired projectors.
These RDDs are used with the following Pneu-Dart Models:
Model 389 – Cartridge Fired
Model 196 – Cartridge Fired
Type P RDDs
Pneu-Dart Type 'P' RDDs color coded in yellow, are for use with our CO2/Air projectors and Blo-Jector. These
RDDs are used with the following Pneu-Dart Models.
X-Caliber Gauged Projector
X2 Gauged Projector
Model 178 B – Air
Model 190B Short Range Projector – Air
Blo-Jector - Air
Type U RDDs
Type 'U' RDDs are our most versatile and universal tail design for Pneu-Dart Projectors. Type U tails for 6cc – 10cc RDDs are our standard tail design for any projector. As an option, Type U tails have been created to support 0.5cc – 5cc RDDs as well. Many of our more seasoned customers may be familiar with these as ‘P’ Type RDDs with Flight Stabilizer Tails.
DNA / Biopsy RDDs
Our DNA extraction device is designed to remove a sample consisting of both the dermis and hypodermis material. Integrated with the aluminum nose cone is a stainless steel cutter measuring approximately 0.165” × 0.150” which envelopes a barbed “capture claw” to ensure sample retention. Field trials yield three independent DNA tests from a single sample. Upon impact, the device retains a sample and falls to the ground. Our DNA devices are available in the following three tail designs: Type ‘C’ for our Cartridge-Fired Projectors; Type ‘P’ for CO2 and Air Activated Projectors; and Type ‘U’ with flight stabilizers.
To learn more about how to use our products and other best practices, visit education.pneudart.com.
